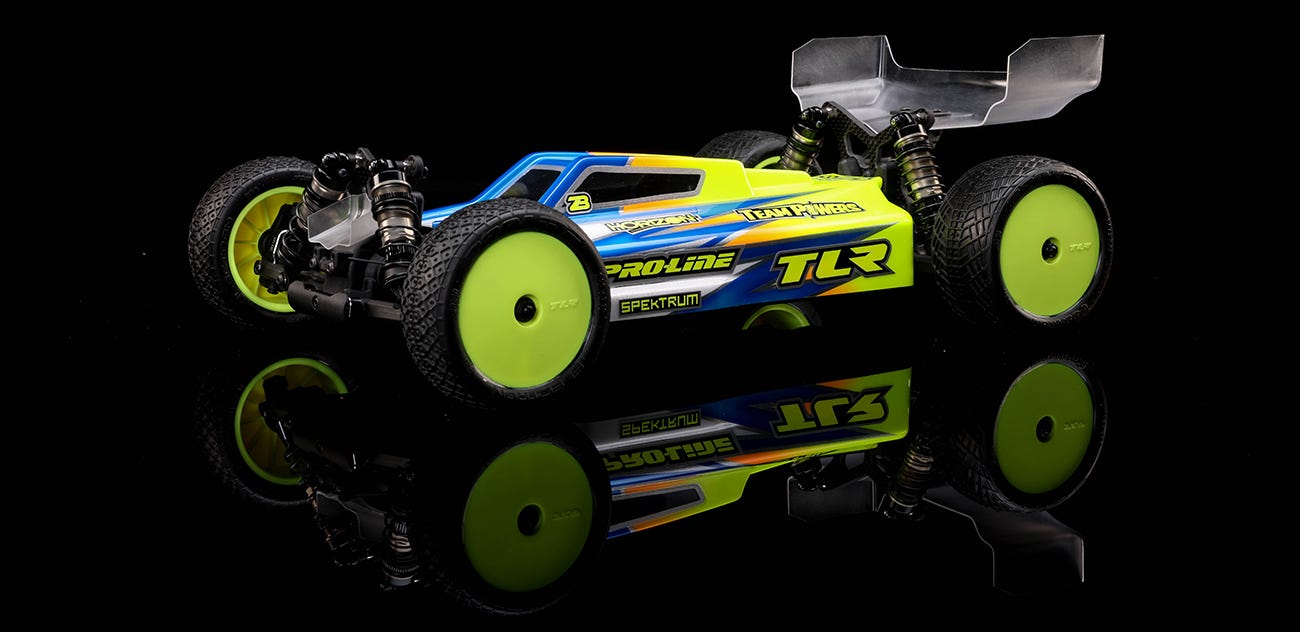

TLR 22X-4 Elite 1/10 4wd Off-Road Buggy Race Kit, TLR03026
The Team Losi Racing 22X-4 ELITE Race kit offers you the winner of the 2021 ROAR Nationals with improved features to make it ELITE. Everything a driver needs to have a race-ready pro-level RC Buggy is contained all in one box!
Looking for spare parts or upgrades?
Features
- Sleek and stylish lightweight 22X-4 body
- Centre Diff included
- Pro level race readiness
- Gen III V2 3mm Shaft Shocks provide plush handling and consistent, leak-free bleed with some ease of use improvements
- Carbon tabs hold the battery down, with adjustable height to accommodate any battery, thin or standard height
- Carbon fibre optimised
- Aluminium option parts included
- Moulded fan mount secured to the centre diff to blow air directly down into the motor for the coolest temps and the most power
- Titanium turnbuckles save weight and increase performance
- Geometry updates
- Gear Diffs
- Adjustable inner pivots for kick up, sweep, pivot width, toe, anti-squat and roll centre
- V2 Floating Servo Mount
- Optimised Composites
- Motor and battery position are adjustable
- Easily accessible differentials
- All metric hardware – easy to find replacement nuts/washers/screws and less tools required
- Ultra-durable 1.2mm polycarbonate TLR 6.5" rear wing
Reviews
Video
Product Information
The Team Losi Racing 22X-4 ELITE Race Kit gives you a race-ready professional grade, full TLR team kit in one box. Including all the key option parts that the TLR factory team uses to win races around the world, the 22X-E ELITE level kit is the most Pro Level Ready 4WD buggy kit that has ever been produced before. These optional parts include a centre diff, aluminium drag link, carbon wing washer, carbon electronics and receiver mounting plates, aluminium locknuts, and titanium turnbuckles.
The improvements on the 22X-E ELITE Buggy Kit don’t stop there, it’s easier to drive and tougher to beat thanks to the additional shock mounting locations, smoother steering gain locations and inner camber link locations.
An RC race buggy destined for the greatness
Included with the 22X-4 ELITE Race Kit are the G3 V2 shocks which not only give you the handling of the Gen II shocks but also come with the highly anticipated ease of use improvements. There is no need for e-clips as the new shock bodies and shock caps increase the spring collar height by 3mm to give you lower ride heights. The new spring cups provide -3mm, 0mm and +4mm spring cup off-sets and the new screw-in feature of the new eyelets ensures they will never pop off.
Designed with durable and lightweight large volume bevel gear diffs you can expect outstanding durability and performance. As standard, the kit will include all-metal diff internals and ring gear. For the spec racer, you can fit out the 22X-4 with composite diff internal gears as well as composite pinion and ring options as well. Included for the front and rear, the adjustable inner pivots give various adjustments for anti-squat, toe, kick up, sweep, pivot width, and roll centre. This gives the 22X-4 ELITE the windows needed to get it dialled in for any driver, any track and any surface.
The strength to weight ratio of carbon fibre has been used to full effect in key parts of this buggy kit with the centre diff mount, front and rear shock towers, front and rear chassis braces, and, the servo and front steering mounts all made with this durable lightweight material.
To ensure that the chassis flex remains unaffected, the servo has been mounted hanging above it. Secured to the chassis plate near its centreline, the mount is supported by 2.5mm rigid carbon fibre that supports the weight/leverage of the servo in order to enhance the chassis flex and steering performance. The V2 version also accommodates all servo off-sets.
Carbon fibre is optimal for many parts of an RC car as it is very rigid and extremely light, giving it a great strength to weight ratio. That’s why TLR have it mounted in all the key spots of the 22X-4 - front and rear shock towers, centre diff mount, front and rear chassis brace, servo mount, front steering gearbox mount, as well as electronics and receiver mounting plates.
With different composite materials in critical parts throughout the 22X-4, you can fine-tune this vehicle for enhanced balance and consistency. Included in the kit are parts the TLR Race Team has recommended which are the soft mudguards and the standard front and rear suspension arms. Dial your 22X-4 in to suit the prevailing conditions and your own driving tendencies.
The 22X-4 allows for the centre differential and motor mount assembly to be mounted in either rear or and front positions with 7mm of adjustment between them. There is also an allowance for 9mm of adjustment with the battery in order to get the weight balance right in the front and rear without having to increase the static weight.
With features and performance that are destined for the top of the podium, the 22X-4 ELITE Race Buggy Kit will push your performance to the next level.
What you need
- Servo
- ESC
- Motor
- Pinion
- Wheels
- Tires
- Paint
- Transmitter
- Receiver
- Battery
Specs
- Product Height
- 5.8" (147 mm)
- Suspension
- Lower A-Arm, Upper Adjustable Link
- Differential
- Oil Filled, Gear Differentials
- Shock Type
- 12mm Big Bore, Oil Filled
- Product Length
- 14" (356 mm)
- Scale
- 1/10
- Gear Pitch
- 48-pitch
- Wheelbase
- 11.2" (284 mm)
- Power Type
- Electric
- Vehicle Type
- Buggy
- Approximate Assembly Time
- 3-5 Hours
- Ball Bearings
- Full Rubber Sealed Ball Bearings
- Chassis
- 2.5mm Milled Plate, 7075-T6 Aluminum
- Drivetrain
- 4WD
- Spur Gear
- 78T, 81T
- Body
- 22X-4, 0.7mm Lightweight, Clear
- Completion Level
- Kit
- Product Width
- 9.8" (249 mm)
