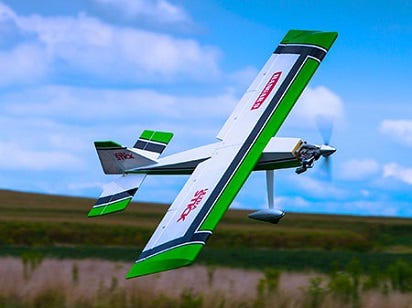

Hangar 9 Ultra Stick RC Plane, 30cc ARF, HAN2365
Performance and versatility are the hallmarks of the new Hangar 9 Ultra Stick 30cc. The enduring and popular Ultra Stick design is given a exciting make over in this latest Hangar 9 incarnation to ensure your flight time is spent enjoying the sport-flying fun that the Ultra Stick is known for.
Looking for spare parts or upgrades?
Features
- Strong and lightweight balsa wood construction
- UltraCote covering for extra strength and colour scheme
- Matching fibreglass wheel pants to match Ultracote colour scheme
- Easily transportable two piece plug in wing set with aluminium tube for quick assembly
- Mounting hardpoints built into the fuselage for the addition of Hangar 9 1/5th scale float set (sold separately) if required
- Proven Ultra Stick design with flaps for increased level of flight performance
- Easily convert to electric with the included motor mount
- Enhanced sport look with tail dragger landing gear
- Double bevelled control surfaces
- Full set of quality hardware included
Reviews
Video
Product Information
The ultra slick, Ultra Stick from Hangar 9
The Hangar 9 Ultra Stick ARF has an impressive heritage. This latest version brings further design innovations to this popular leader in the Stick genre. The key performance enhancers are optional quad flaps and a large double bevelled control surface enabling 3D flight and high performance. Built with the intermediate to expert pilot in mind, the Ultra Stick 30cc ARF has the wide flight envelope you’d expect in a giant-scale sport plane. You have the option of both gas or electric power depending on your preferred flight style with mounting and hardware for both included.
Make the most of crow and flaperon mixes with the double bevelled flaps and ailerons. Oversized elevator, rudder and control surfaces will give you a new level of 3D flight capability. If you want to add floats the fuselage has hardened mounting points for separately purchased Hangar 9 1/5th scale floats. If you’re familiar with the stick model genre you’ll appreciate the next level of sport flying capability that the Hangar 9 Ultra Stick 30cc ARF brings to your next flight.
What you need
- Full-range 8+ channel transmitter and compatible receiver
- 30cc glow engine
- 2S 7.4V LiPo receiver battery
- Compatible LiPo charger
- 8 standard aircraft servos
- Servo extensions in 150mm, 450mm, 600mm
- 17 x 6 to 18 x 10 propeller and 3" 2-blade spinner
- Tools and adhesives for assembly
Specs
- Wingspan
- 80.75" (205 cm)
- Overall Length
- 74" (188 cm)
- Wing Area
- 1360.3 sq in (87.76 sq dm)
- Flying Weight
- 12-14 lbs (5.4 - 6.35kg)
- Engine Size
- 30cc
- Motor Size
- Power 160
- Radio
- 6ch
- Servos
- A6180 Digital Aircraft Servo
- Trim Scheme Colors
- White, Black, Apple Green
- CG (center of gravity)
- 4-5.25" Rearward of wing leading edge
- Wing Loading
- 22.02oz./sq.ft.
- Prop Size
- 17x6 - 18x10
- Spinner Size
- 3"
- Speed Control
- 80 amp
- Recommended Battery
- (Motor)10S 4400mAh (Receiver) 6.6V 2200mAh 2S LiFe
- Aileron
- Expo 25%
- Elevator
- Expo 20%
- Rudder
- Expo 20%
- Flaps
- Y
- Retracts
- N
- Control Throw (Ailerons)
- (Low) 3cm Up and 2.5cm Down (High) 6.8 Cm Up and 5.5cm Down
- Control Throw (Elevator)
- (Low) 2.7cm Up and Down (High) 5.5cm Up and Down
- Control Throw (Rudder)
- (Low) 3.5cm Left and Right (High) 7 cm Left and Right
- Control Throw (Flaps)
- 2.5mm Takeoff and 5.5cm Landing
- Approx. Flying Duration
- 6 Mins
- Experience Level
- Intermediate
- Recommended Environment
- Outdoor
- Assembly Time
- 10-15 Hours
- Is Assembly Required
- Yes
