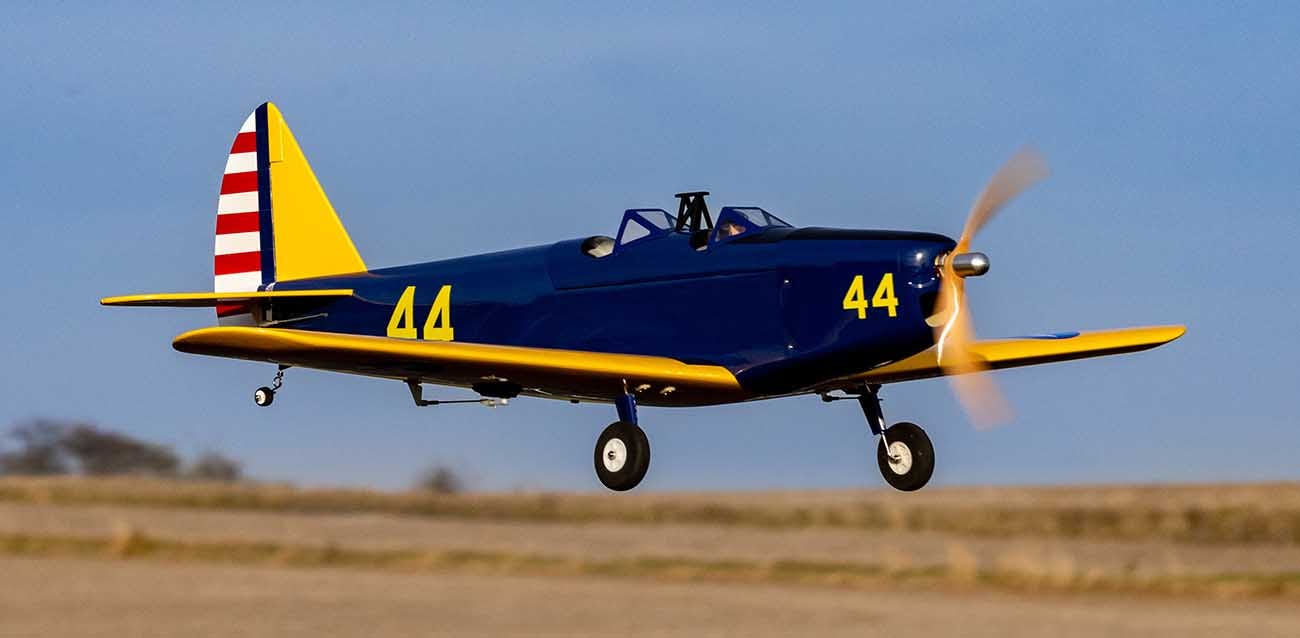

Hangar 9 Fun Scale PT-19 RC Plane, PNP, HAN3180
For RC sport and scale plane pilots looking to transition from foam to balsa models, the new Hangar 9 Fun Scale PT-19 PNP RC Plane delivers a reproduction of one of the primary trainers used in World War II.
Looking for spare parts or upgrades?
Features
- Lightweight, laser-cut balsa and plywood construction covered in genuine Hangar 9 UltraCote film
- 4250-600kV brushless outrunner motor and (4) Spektrum A391 servos factory-installed
- Spektrum Avian 60A Smart ESC gives you access to real-time telemetry data including current, motor RPM, battery voltage and other data via compatible transmitters and receivers
- Painted fiberglass cowl
- Increase the realistic appeal with the optional-use landing gear fairings and pilot
- Convenient access to the electronics and battery through the large top hatch
- Easily transported and assembled with two-piece, bolt-on wings
- Plug-N-Play completion level is ready for installation of your receiver and battery
- Wide range of performance and flight times as it is compatible with a wide variety of popular LiPo batteries
- Quick and easy assembly – no glue required for main assembly
- 14 x 8.5 wood propeller included for use with a 3-4S LiPo (5S and 6S LiPo batteries require a different size propeller)
Reviews
Video
Product Information
The Fairchild PT-19s were a critical part of the primary flight-training program during World War II to turn recruits into combat-ready fighter pilots. Hangar 9 brings this widely manufactured aircraft to your local flying field with the Fun Scale PT-19 PNP RC Plane. If you’re looking to transition from foam models, this RC plane is designed to be the perfect first balsa aircraft.
Flying a balsa aircraft has never been easier
This true Plug-N-Play completion model features a factory-installed power system with a paired 4250-600kV brushless outrunner motor and an exclusive Spektrum Avian 60A Smart ESC. When combined with Spektrum AirWare equipped transmitters and compatible receivers (like the Spektrum AR637T), you can receive a variety of telemetry data in real-time including battery voltage, motor RPM, current and more, while you fly! The power system is also compatible with a wide variety of battery options, offering you a wide range of performance and flight times.
Providing the Fun Scale PT-19 RC Plane with extraordinary durability is the expertly crafted laser-cut lightweight balsa and plywood construction. The all-wood airframe is covered in authentic UltraCote covering that is factory-applied with precision and provides a finish that is long-lasting and easy to maintain.
The two-piece plug-in wings make transportation and set up at the field straightforward. Assembly of the PT-19 RC plane is easy with only standard tools needed - put the battery on charge, and you’ll have the plane ready to go before it’s finished – all you need to do is bolt the model together, install the receiver, install the charged LiPo battery and fly! The Hangar 9 Fun Scale PT-19 PNP RC Plane is a balsa model with outstanding sport-plane flying characteristics with great value.
What's included in the box?
-
(1) Hangar 9 PT-19 PNP
-
(1) Spektrum™ Avian 60 Amp Brushless Smart ESC (installed)
-
(1) 4250-600Kv Brushless Outrunner Motor (installed)
-
(4) Spektrum A391 39g Digital Servo (installed)
-
(1) 14x8.5 Wood Electric Propeller
-
(1) User Manual
What you need
- (1) Full-range, 6+ Channel Transmitter and Receiver
- (1) 4S 14.8V to 6S* 22.2V 2200-5000mAh LiPo Battery with EC5™ or IC5® Connector
- (1) Compatible LiPo Charger
*6S (22.2V) LiPo battery requires a 12x6E propeller. The included 14x8.5 wood propeller is for 4S (14.8V) LiPo battery operation.
Specs
- Material
- Wood
- Landing Gear
- Fixed
- Motor Type
- Brushless - Outrunner
- Speed Control
- Included
- Approximate Assembly Time
- Less than 1 Hour
- Flaps
- No
- Product Weight
- 95.4oz (2704g)
- Completion Level
- Plug-N-Play
- Propeller Size
- 14x8.5E
- Prop Range
- 14x8.5E (4S), 12x6E (6)
- Power Type
- Electric
- Servos
- Included
- Skill Level
- Level 3
- Trim Scheme Colors
- HANU884 Cub Yellow, HANU885 Midnight Blue, HANU866 True Red, HANU870 White
- Wingspan
- 56.5" (1435 mm)
- Charger
- Sold Separately
- Receiver
- Sold Separately
- Battery
- Sold Separately
- Connector Type
- IC5
- Motor Size
- 4250-600Kv
- Product Length
- 46.18" (1173 mm)
- Minimum Required Radio
- 6 Channel
- Radio
- Sold Separately
- Technology
- Smart
Product Manuals
All product manuals are provided by the manufacturer, If you don't find the manual or information you are looking for, contact our experts for help.
