Axial SCX10 Pro Scaler Competition Kit, AXI03028

In stock

The SCX10 Pro 4WD is a competition ready kit that delivers top level performance, convenience and value for money. For drivers who push their cars to the edge this kit has many advantages and innovations but is also a great drive for those wanting a quality RC crawler.

Looking for spare parts or upgrades?

View all spare parts


  • Easily build a competition-ready scale crawler with plenty of innovations that have not been offered before in a comp-ready kit
  • Compared to buying components separately the Pro kit saves you plenty of money and time
  • More adjustable, lower and lighter the chassis is designed for competition and to optimise side hilling, break-over and climbing performance
  • Steel tube axles are multi-piece in order to accommodate an axle-mounted servo (AMS) or you can opt for a chassis-mounted servo (CMS)
  • Improved balance and excellent weight distribution from the forward and low motor position
  • The rear axle can be underdriven via servo or you can manually lock the rear axle in 1:1 or underdrive
  • New smooth body 96mm aluminium oil-filled shocks
  • With designer Wyatt Mellon driving the Pro has already won and placed at multiple events
You're reviewing:

Axial SCX10 Pro Scaler Competition Kit, AXI03028

Your Rating


Product Information

Axial is not just for the weekend warriors but for those that drive at high-level competitions as well. To help bridge that gap Axial have responded to requests to come up with an easy-to-build and innovative scale crawler kit that helps the novice make the jump to top-level performance. This exciting new development in the RC crawler world is the Axial SCX10 Pro 4WD Kit.

With well-thought-out engineering focussing on high performance and competition terrain, the Axial SCX10 Pro 4WD Kit will stay the course whether you’re tackling steep rock climbs or sidehills giving you the confidence to push your driving further. If you are looking to put together a comp spec scale crawler in the most cost-effective and convenient manner then the Pro Kit is the way to go. Everything you need including transmission, axles, chassis, drive shafts and more is provided and you get to trick it out with your choice of electronics, tyres, wheels and body kit. The Axial SCX10 Pro 4WD Kit has achieved competition success in the United States and there is absolutely no reason to believe that you can’t achieve the same.

Axial SCX10 Pro 4WD KitAxial SCX10 Pro is the best of the best scale comp crawler kit!

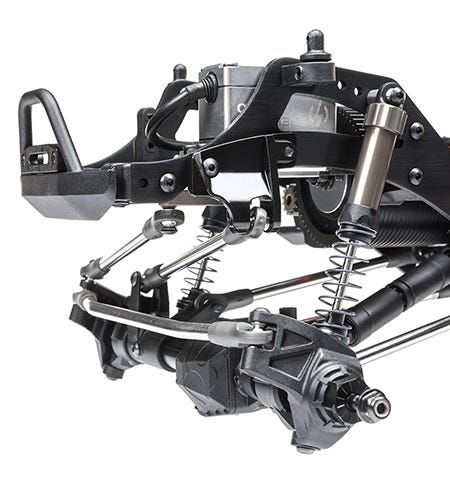

The highly adjustable and lightweight Pro chassis handles side hilling, climbing and break-over with ease due to the competition-specific design. New aluminium oil-filled shocks, 3-link/4-link suspension and complete ball bearings ensure consistently high performance. Built with steel tubes the multi-piece Pro45 axles allow for an axle-mounted (AMS) servo or you can opt for the more traditional chassis-mounted servo (CMS). For superior weight distribution, the Axial SCX10 Pro 4WD Kit allows you to locate your choice of motor low and forward using the provided mount positions. This also gives you the balance you need when tackling tough lines in order to avoid flipping. Using the servo you can underdrive the rear axle or you can manually lock the rear axle in 1:1 or underdrive.

The shock spring and collar on the Axial SCX10 Pro 4WD Kit have been eliminated from the outside of the shock body which enables the smooth body of new aluminium, oil-filled shocks to provide a higher clearance as they take advantage of the Pro Kit's increased steering angle. The shock absorbers use 12mm diameter springs and the eye-to-eye length is 96mm. The lower shock cup on the Axial SCX10 Pro 4WD Kit features a built-in bump stop that allows you to trim and fine-tune your suspension while the dual o-ring lower shock cap acts as the upper spring retainer.

If you’re looking for the pinnace of RC scale crawler kits that come with the lowest overall competition-ready cost, AND, the highest level of performance engineering the Axial SCX10 Pro 4WD Kit is where your search should begin and end.

What’s in the Box?

  • (1) SCX10 Pro Kit

  • (1) Product Instruction Manual

What you need

  • (1) 2- to 4-Channel Surface Transmitter & Receiver
  • (1) Rock Crawler Motor
  • (1) Electronic Speed Control
  • (1) Steering Servo
  • (1) Body for SCX10 Pro Chassis
  • (4) Wheels with 12mm Hex
  • (4) Tires to Fit Wheels
  • (1) Micro servo for optional use of shift-able underdrive


Shock Type
2.9" - 3.8" (74-96mm) Aluminum Oil filled
Product Weight
3lbs (1.4kg) Without Components
Sold Separately
Speed Control
Sold Separately
Ball Bearings
Complete Vehicle
Integral with ESC
Sold Separately
Approximate Assembly Time
5-7 Hours
Not Included
Ground Clearance
2.25" (57.1mm)
Product Width
9.25" (235 mm)
Steering Type
Vehicle Type
Rock Crawler
Aluminum Plate
Internal Gear Ratio
10.26:1, 15.33:1
Motor Size
540/550 recommended
Product Height
7" (178 mm)
Completion Level
Final Drive Ratio
38.46:1, 57.50:1
Power Type
Product Length
16.65" (423 mm)
Sold Separately
12.5" (318 mm)
Sold Separately
Wheel Hex Size
Gear Pitch
Sold Separately
