Arrma Kraton eXtreme Bash 1/5 Monster Truck, Rolling Chassis, No Longer Available
The ARRMA KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck is fully assembled and ready for you to install the electronics of your choice. Kitted out with an exclusive EXB matte and gloss finish body, this Kraton, like those before it, is one tough RC Monster Truck!
Looking for spare parts or upgrades?
Features
- Exclusive gloss and EXB matte effect body
- CNC aluminium laser-etched EXB 7075 T6 5mm thick chassis plate
- Front brace mount is EXB red-anodized CNC aluminium
- Impact absorbing EXB front bumper design
- Customise the electronics for the power and speed to suit you
- Plenty of options and parts in the EXtreme Bash range
- Designed to go fast and be tough doing it
- Rear lower chassis brace is black anodized aluminium
- Side pods on chassis made from strong composite
- 49 and 56 series motor plates made from red anodized aluminium
- Servo saver adaptors in 15T and 17T
- Servo saver springs are heavy duty
- Mounts for 1/5 and 1/6 servos
- Sway bars on front and rear
- Increased durability from centre body brace and support
- Front and rear diff modules designed for easy access
- Spur gear is 47T with an optional 39T available
Reviews
Video
Product Information
The NEW King of Kratons
As the ‘King of Kratons’ the ARRMA KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck delivers on its claims of being the biggest and the best. Being a Roller you have the opportunity customise the 8S brushless power system that you install and then fly over off-road terrain with ease.
To handle the rigours of high-speed bashing over rugged terrain the ARRMA engineers have added additional toughness in all the areas it matters on the ARRMA KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck. The incredible strength comes from the number of EXB-hardened parts and options which include CNC red anodized aluminium EXB front brace mount, 7075 T6 CNC aluminium laser etched 5mm EXB chassis plate, updated design on the impact-absorbing EXB front bumper to name a few. Toughness and good looks come from the exclusive EXB matte and gloss effect finished body gives this RC Monster Truck a unique and strong appearance.

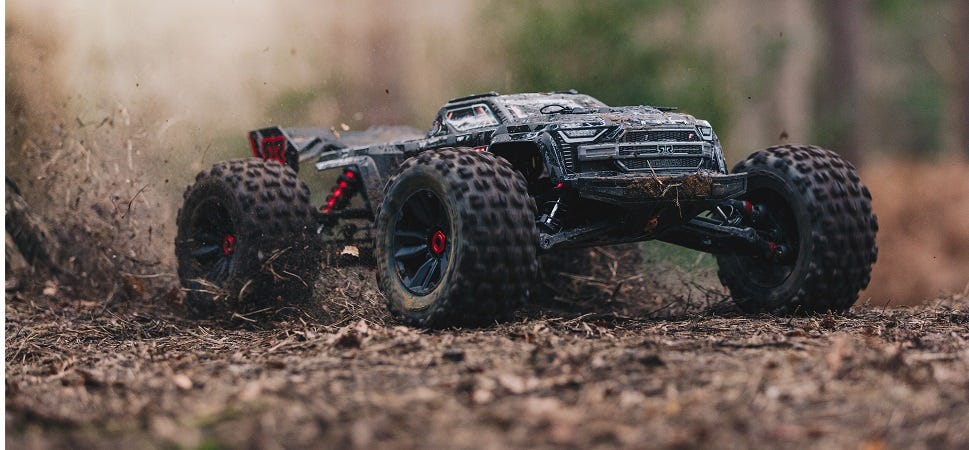

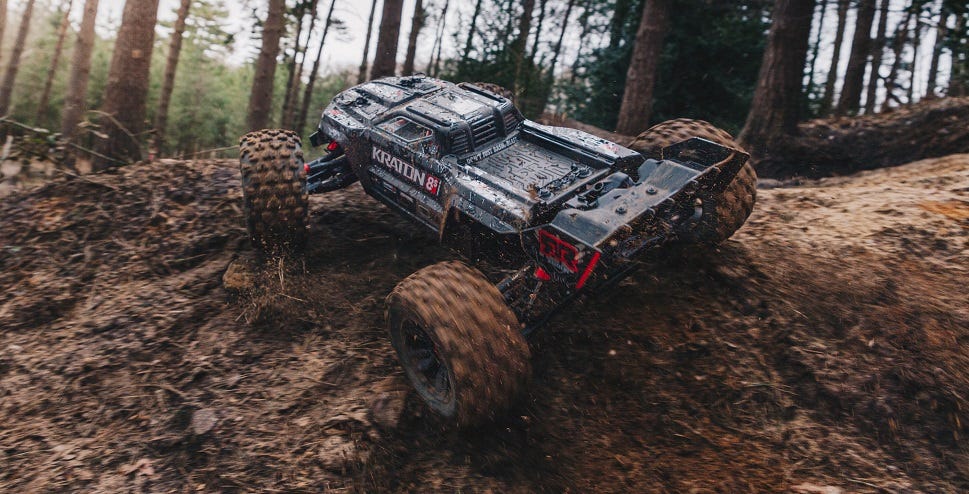

No terrain is too tough for the Arrma Kraton 1/5 EXB Monster Truck
Asphalt, grass, dirt and rocks are only minor inconveniences for the ARRMA KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck as the oil-filled, adjustable, 20mm bore shocks on super thick composite towers eat up all the lumps and bumps that come its way. The 7mm steel steering turnbuckles, and, the 8mm steel rear turnbuckles also add to the invincibility of the King of Kratons. To keep this 1/5 scale juggernauts feet on the ground the ARRMA KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck is fitted with substantial dBoots COPPERHEAD 2 big block tyres on multi-spoke wheels that include strengthened hubs.
More strength is added to the Kraton with composite chassis side pods, aluminium centre braces and centre body support. Strengthened steel driveshafts and all-metal gearbox internals and diff outdrives give you a heavy-duty drivetrain that is reliable and tough enough to handle track bashing at speed.
The design detail of the ARRMA KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck all adds up to provide responsive handling and confident control at high speeds.
To keep your repair downtime minimal ARRMA have designed driver-friendly easy access with a simple to use slide mount entry for motor maintenance, and, easily accessible front and rear diff modules. The waterproof servo mount, ESC tray and receiver box are also easily accessible in the moulded electronics module and this gives your electronics protection from, not only rugged track conditions but from moisture and dirt as well.
What ARRMA have succeeded in doing with the ARRMA KRATON 1/5 4WD EXtreme Bash Roller Speed Monster Truck is making the best better. All hail the King of Kratons!
What you need
- Motor
- Electronic Speed Control
- Transmitter
- Receiver
- Steering Servo
- Batteries
- Charger
- LiPo Charging Bag
- Mod 1 D8 Pinion Gear
Specs
- Completion Level
- Race Roller
- Scale
- 1/5
- Length
- 30.35 in (771mm)
- Width
- 23.7 in (602mm)
- Height
- 11.1 in (282mm)
- Weight
- 23.32 lb (10.6kg)
- Wheelbase
- 19.33 in (491mm)
- Front Track
- 23.7 in (602mm)
- Rear Track
- 23.7 in (602mm)
- Chassis
- 5mm Plate, 7075-T6 Aluminum
- Suspension
- Independent
- Shock Type
- Oil-Filled, Coil-Over Springs
- Drivetrain
- 4WD
- Differential
- 3 Gear Diffs
- Wheel Type
- MT (4.88 in, 24mm Hex)
- Wheel Diameter
- 4.88 in (124mm)
- Wheel Width
- 3.54 in (90mm)
- Tire Tread
- dBoots® COPPERHEAD™ 2
- Tire Diameter
- 8.31 in (211mm)
- Spur Gear
- 47T and 39T (Included)
- Gear Pitch
- 1.0MOD
- Internal Gear Ratio
- 9.06
- Rollout (Tire Circumference)
- 26.11 in (663mm)
- Body
- Painted, decaled and trimmed
- Ball Bearings
- Full ball bearings throughout
- Experience Level
- Intermediate
- Recommended Environment
- All-Terrain
- Is Assembly Required
- Yes
- Approx. Assembly Time
- 1-3 Hours
