FMS ASW-17 EP Scale Glider PNP (FMS129P)
Looking for spare parts or upgrades?
Features
- Two piece wing
- Functional Flaps
- Made of highly durable EPO
- Fold away high-efficiency propeller
- Snap together assembly, no glue necessary
Reviews
Product Information
True to the FMS spirit, no detail was overlooked in the design of the ASW-17. The FMS engineers made 4 expensive tooling adjustments just to micro-adjust the airfoil for perfect efficiency. The wing, vertical and horizontal stabilizers are designed with a snap-together structure. With a simple snap, the surfaces attach to the fuselage with pinpoint precision- no screws or glue necessary! Build the aircraft in as little as 3 minutes! Like the 3000mm Fox, the ASW-17 has a pre-installed carbon fiber spar that ensures wing rigidity in high-G maneuvers. To achieve the same dihedral as the real aircraft, the ASW-17 was designed with a specialized CNC aluminum spar joiner- allowing the aircraft to maintain its wing geometry during demanding flight routines. Performance-wise, a high-quality Hobbywing 40A ESC paired with a Predator 3541-750KV motor provides ample power with a 4S pack to perform most aerobatic maneuvers. If efficiency, stability and aerobatic capabilities are what you seek in a glider, look no further than the FMS 2500mm ASW-17!

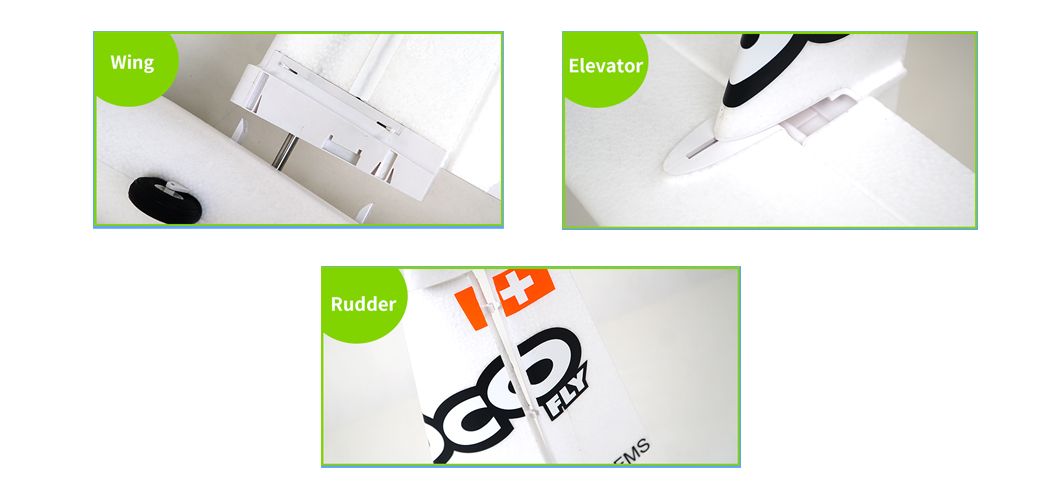

Build the aircraft in minutes!
The wing, vertical and horizontal stabilizers are designed with a snap-together structure. With a simple snap, the surfaces attach to the fuselage with pinpoint precision. No screws or glue necessary!

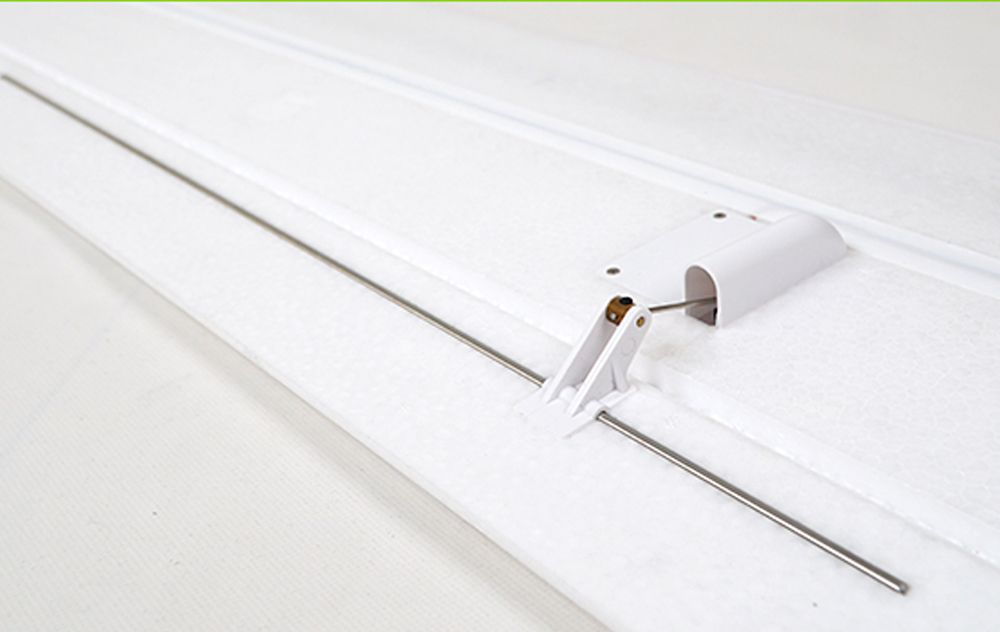

High strength wing structure
Like the 300mm Fox, the ASW-17 has a pre-installed Carbon-fiber spar that ensures wing rigidity in high-G maneuvers.

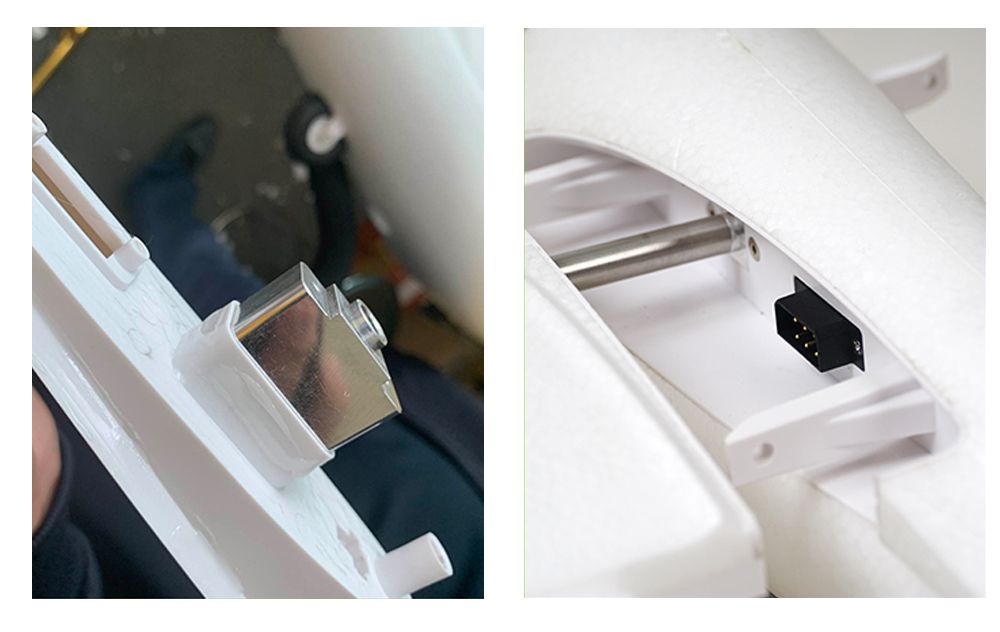

Metal spar connectors
Metal spar connectors embedded within the wing ensures scale and functional wing dihedral.

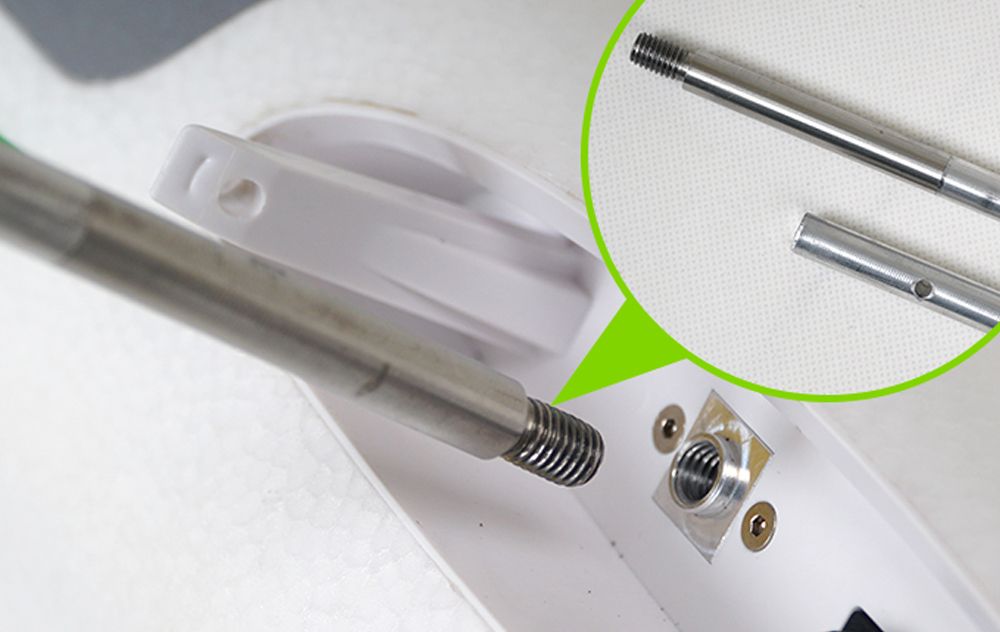

Spar joiner
The ASW-17 was designed with specialized CNC aluminum spar joiner — allowing the aircraft to maintain its wing geometry during demanding flight routines.

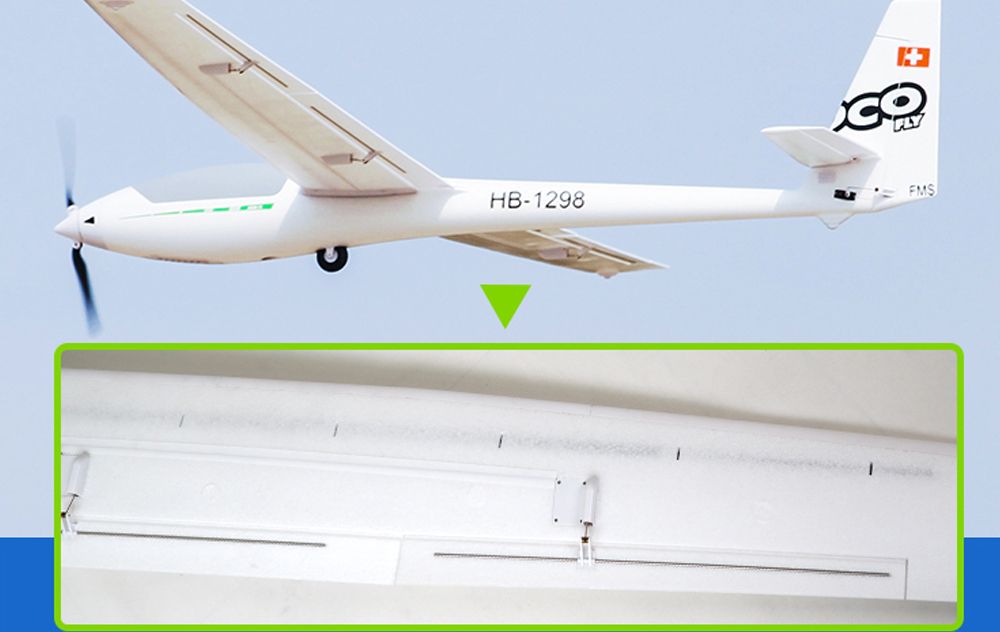

Aileron and Flap Structure
Reinforced aileron and flap structure for precision flight characteristics.
Latch and Canopy
Press-to-release canopy latch and a textured canopy.

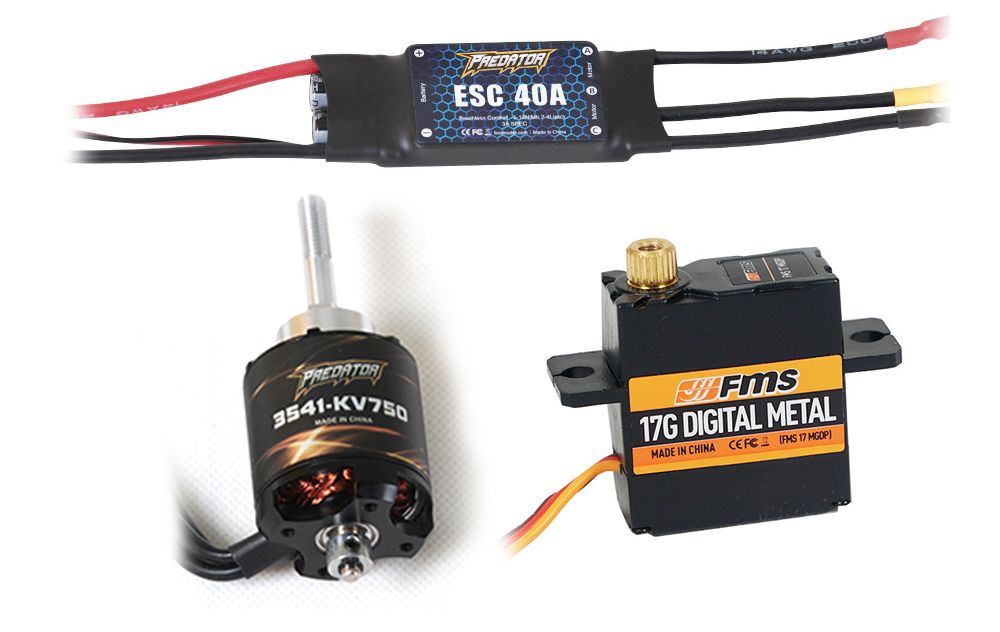

Motor, ESC and Servo
Predator 3541-750KV motor, a high-quality Hobbywing 40A ESc and 17g servos.
What's in the Box?
-
(1) ASW-17 EP Glider PNP
-
(1) Hobbywing 40A ESC
-
(1) Predator 3541-750KV motor
-
(1) Product Manual
What you need
- 14.8V 2200-2600mAh 35C Battery
- 6-Channel Radio
Specs
- Approximate Flight Time
- 10 minutes
- Wingspan
- 98.4 in (2500mm), 98.4 in (2500mm)
- Minimum Required Radio
- 6-channel
- Length
- 54.7 in (139mm)
- Servos
- Two 9g, four 17g
- Aileron
- yes
- Technology
- AS3X
- Material
- EPO foam
- Wing Area
- 779.5 sq in (50.3 sq dm)
- Minimum Speed Control
- 40A included with XT-60 battery connector
- Approximate Assembly Time
- Less than 1 Hour
- CG (Centre of Gravity)
- 2.7 - 3.1" (70 - 80mm) back from leading edge of wing measured at the fuselage
- Motor Size
- 3541-750Kv
- Recommended Motor Battery
- 4S LiPo 14.8V 35C 2200-2600mAh w/XT60 connector (sold separately)
- Completion Level
- Plug-N-Play
- Elevator
- Yes
- Throttle
- Yes
- Charger
- Sold separately
- Flying Weight
- 2001-25000g, 5.2lbs (2350g) approximately
- Retracts
- no
- Trim Scheme Colors
- White with black lettering
- Wing Loading
- 0.09 oz sq/in (45.7 g sq/dm)
- Flaps
- Yes
- Landing Gear
- Monowheel with tail skid
- Propeller Size
- 13.5x6 fold away
- Transmitter Range
- Full
